AC Tonnage Calculator - HVAC Calculation Tool

1. What is an HVAC Tonnage Calculator?

Definition: This calculator estimates the cooling capacity (tonnage) required for an HVAC system based on the area to be cooled, number of occupants, windows, and exterior doors.

Purpose: It helps homeowners estimate the HVAC system size needed to cool their space, ensuring comfort and energy efficiency.

2. How Does the Calculator Work?

The calculator uses the following method:

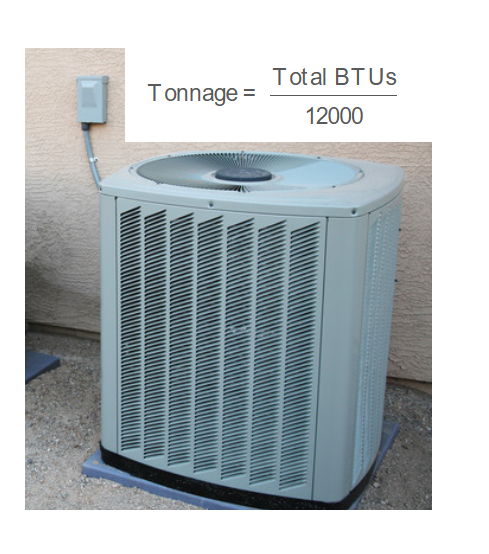

Formulas: \[ \text{Base BTUs} = \text{Area (sq ft)} \times 25 \] \[ \text{People BTUs} = \text{Number of People} \times 400 \] \[ \text{Windows BTUs} = \text{Number of Windows} \times 1000 \] \[ \text{Doors BTUs} = \text{Number of Exterior Doors} \times 1000 \] \[ \text{Total BTUs} = \text{Base BTUs} + \text{People BTUs} + \text{Windows BTUs} + \text{Doors BTUs} \] \[ \text{Tonnage} = \frac{\text{Total BTUs}}{12000} \] Where:

• \( \text{Area} \): Area to be cooled (sq ft)
• \( \text{Number of People} \): Number of occupants
• \( \text{Number of Windows} \): Number of windows
• \( \text{Number of Exterior Doors} \): Number of exterior doors
• \( \text{Tonnage} \): Estimated cooling capacity (tons)

Unit Conversions:

• 1 sq m = 10.7639 sq ft

Steps:

• Enter the area to be cooled (positive value) and select the unit (sq ft or sq m).
• Enter the number of occupants, windows, and exterior doors (non-negative values).
• Convert the area to square feet if necessary.
• Compute the total BTUs by adding contributions from area, occupants, windows, and doors.
• Convert the total BTUs to tonnage (1 ton = 12,000 BTUs).
• Display the result, rounded to 2 decimal places.

3. Importance of HVAC Tonnage Calculations

Estimating the correct tonnage is crucial for:

• Comfort: Ensuring the HVAC system can adequately cool the space.
• Efficiency: Avoiding energy waste from an oversized or undersized system.
• Longevity: Preventing short-cycling or overworking, which can reduce the system’s lifespan.

4. Using the Calculator

Examples:

• Example 1: For a house with 2000 sq ft, 5 occupants, 15 windows, and 3 exterior doors:
  • Base BTUs: \( 2000 \times 25 = 50000 \, \text{BTUs} \)
  • People BTUs: \( 5 \times 400 = 2000 \, \text{BTUs} \)
  • Windows BTUs: \( 15 \times 1000 = 15000 \, \text{BTUs} \)
  • Doors BTUs: \( 3 \times 1000 = 3000 \, \text{BTUs} \)
  • Total BTUs: \( 50000 + 2000 + 15000 + 3000 = 70000 \, \text{BTUs} \)
  • Tonnage: \( \frac{70000}{12000} \approx 5.83 \, \text{tons} \)
• Example 2: For a house with 150 sq m, 4 occupants, 10 windows, and 2 exterior doors:
  • Convert area: \( 150 \times 10.7639 = 1614.585 \, \text{sq ft} \)
  • Base BTUs: \( 1614.585 \times 25 \approx 40364.625 \, \text{BTUs} \)
  • People BTUs: \( 4 \times 400 = 1600 \, \text{BTUs} \)
  • Windows BTUs: \( 10 \times 1000 = 10000 \, \text{BTUs} \)
  • Doors BTUs: \( 2 \times 1000 = 2000 \, \text{BTUs} \)
  • Total BTUs: \( 40364.625 + 1600 + 10000 + 2000 = 53964.625 \, \text{BTUs} \)
  • Tonnage: \( \frac{53964.625}{12000} \approx 4.50 \, \text{tons} \)

5. Frequently Asked Questions (FAQ)

Q: What does HVAC tonnage mean?
A: HVAC tonnage refers to the cooling capacity of an air conditioner, where 1 ton equals 12,000 BTUs per hour—the amount of heat needed to melt 1 ton of ice in 24 hours.

Q: Why include occupants, windows, and doors in the calculation?
A: Occupants add heat through body warmth, while windows and doors increase heat gain due to potential air leakage and solar radiation.

Q: Is this calculator’s estimate sufficient for purchasing an HVAC system?
A: No, this is an estimate. A professional Manual J load calculation is recommended to account for factors like insulation, climate, and windows for precise sizing.
